TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method

TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method
TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method

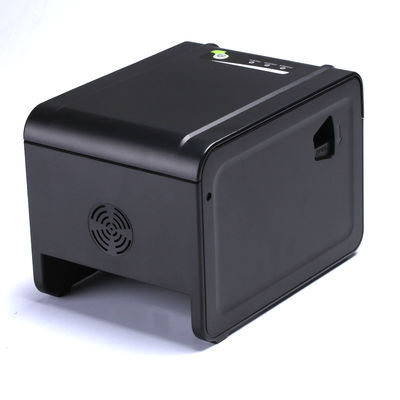

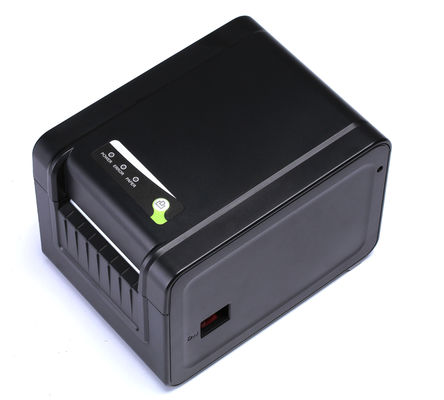

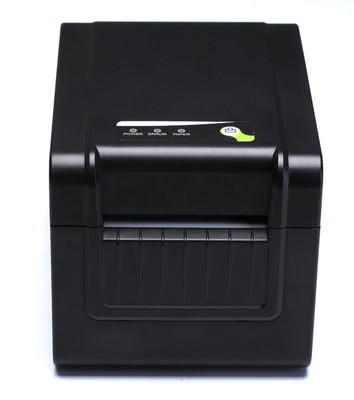

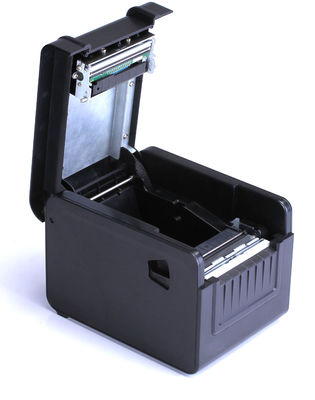

Large Image :  TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method

Product Details:
Place of Origin: China
Brand Name: Bimi
Certification: FCC, ce, RoHS
Model Number: TP-80L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $51.00/units
Packaging Details: 8pcs/CTN<br>50*45*37cm<br>GW:16 kgs
Detailed Product Description
Products Status: Stock Interface Type: USB+COM+LAN+WIFI+BLUETOOTH
Max. Resolution: 576 Dots/Line Warranty(Year): 1-Year
After-sales Service: Others Item Name: TP-80L Thermal Printer
Type: Thermal, Thermal Color: Black
Interface: USB Printing Method: Thermal Line
Barcode: 1D 2D Paper Width: 80 Mm
Printing Speed: 220mm/s Battery: No
Paper Cut: Full/Half Style: Black And White
Use: Barcode Printer

Related Products
TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method 0
TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method 1
TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method 2
TP-80L 80mm Thermal Receipt Printer with 220mm/s Printing Speed and Thermal Line Method 3
Product Description
Model
Bimi Thermal printer TP-80L
Printing Method
Thermal Line
Printing width
72mm
Resolution
576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)
Print speed
220mm/Second
Interface
USB, LAN, USB+LAN
Line Spacing
3.75mm(Can adjust line spacing by command)
Line No.
Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines
Character
 standard GB18030 simplified / traditional Chinese Fonts

Character Size
ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)


Extended character set
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128 / 2D barcode:QRCODE
CODABAR/CODE93/CODE128
Graphics printing
Supports bitmap download and print ( each bitmap size Max.20K)
Cutter Function
 Full cut/Half cut
Type
Thermal
Width
79.5±0.5mm
Diameter
≤80mm
Feed method
Easy feed(Clameshell feed)
Commands
ESC/POS
Power Adaptor
Input:AC 110V/220V,50~60Hz ; Output:DC 24V/2.5A
Cash Drawer output
DC 24V/1A
Input Buffer
2048K bytes
NV Flash
256K bytes
Working
Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Print Head Life
100KM(print density≤12.5)
Cutter Life
1000,000times
Driver
Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
